< Feature >
Removing burrs of works in all kinds of shapes such as 3-D works after forming process etc.
Deburring after pressing process can be performed without removing protective seal on works, and no secondary burrs occurs. |
 |
< Applications >
Removing burrs on metal works which are generated by punching and laser cutting process, etc. |
|
< Maximum r.p.m. >
1500rpm |
|
Standard type
Standard type is same design as our conventional products, weight saving by 15% by modifying of shape and materials is achieved.
|
|
Spiral type
Spiral type is ideal design, however mass production of this type is difficult. (Conventional wisdom)
Spiral arrangement was realized by our own core material design and forming technique.
By improving efficiency of deburring and polishing speed, high quality surface finishing can be achieved with less scratch.
|
|
Flap type
Flap type has similar brush arrangement to conventional flap wheels, but It is designed with the most suitable number of brushes for deburring.
Weight increase is kept within 1.5 times compared with standard type taking weight saving into consideration.
|
|
|
|
 |
| < Suitable application > |
| Shape of workpiece |
Hole burrs |
Much > Polishing marks > Less |
| Flat shape |
No |
 >  >  >  >
|
| Flat shape |
Yes |
> >
|
Cubic shape
(Bending, Burring, etc.) |
|
> >
|
|
|
|
|
PAX-180 Standard
PAX-220 Spiral
PAX-400 Spiral
PAX-220 Flap
PAX-400 Flap
|
|
 < Exclusive Abrasive cloth for Soft Uniflap PAX >
|
| 1. |
Super hard type (#150) |
|
| Super hard type is Suitable for large size of chamfer, removing black scale of steel plate.
|
|
|
Hard type has improved durability while maintaining grindability compared to conventional type.
Recommended for application where polishing mark is small matter.
|
|
|
|
Medium type is designed with proper deburring performance and flexibility generating less polishing marks. All-rourd application.
|
|
|
|
Soft type is designed for application requiring no polishing mark by brush, however minimum deburring performance is assured.
|
![](../common/img/spacer.gif") |
< Standard for Special Machine >
| Design |
Abrasive
cloth type |
- |
Grit
number |
O.D. |
x |
I.D. |
- |
W |
x |
B.D. |
| Standard |
JCE , PAX |
- |
180 |
300 |
x |
125 |
- |
335 |
x |
32 |
| Spiral |
PAX |
- |
220 |
300 |
x |
125 |
- |
335 |
x |
32 |
| Flap |
PAX |
- |
400 |
320 |
x |
140 |
- |
340 |
x |
32 |
|
|
< Standard for Hand Tool >
| Design |
Abrasive
cloth type |
- |
Grit
number |
O.D. |
x |
I.D. |
- |
W |
x |
S.D. |
| Standard |
PAX |
- |
180 |
150 , 200 |
x |
65 |
- |
25 ,50 |
x |
10 |
|
|
< Standard for Buff Lathe >
| Design |
Abrasive
cloth type |
- |
Grit
number |
O.D. |
x |
I.D. |
- |
W |
x |
B.D. |
| Standard |
PAX |
- |
180 |
300 |
x |
125 |
- |
50 ,100 |
x |
25.4 ,32 |
|
|
|
 * O.D.=Outside Diameter, I.D.=Inside Diameter, W=Width, B.D.=Bore Diameter, S.D.=Shaft Diameter
|
|
|
| Special Machine |
 |
| Hand Tool |
 |
|
| Buff Lathe |
 |
|
|
Soft Uniflap respond to deburring and contoured surface polishing great lineup such as Hand Tool, Buff Lathe and Special Machine usage
|
|
|
Special Machine
O.D. x I.D. - W x B.D.
e.g. PAX-180 300x125-335x32 |
|
Hand Tool
O.D. x I.D. - W x S.D.
e.g. PAX-180 150x65-25x10 |
|
Buff Lathe
O.D. x I.D. - W x B.D.
e.g. PAX-180 300x125-100x32 |
|
|
|
|
|
|
|

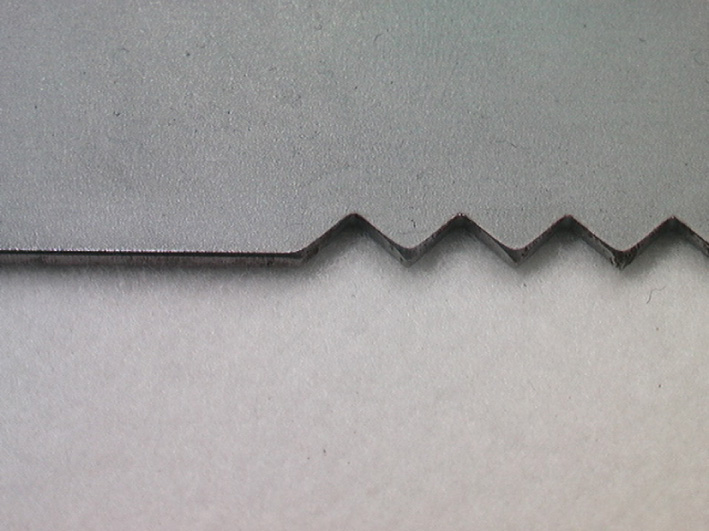

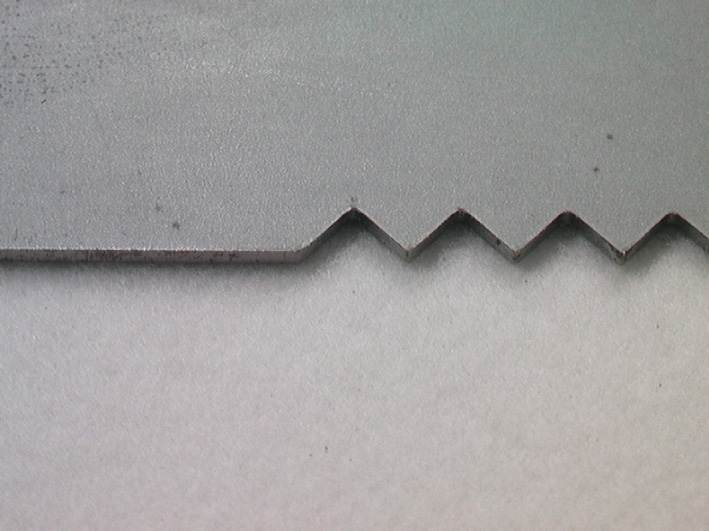

< Polished workpieces (SECC) by Spiral type PAX-220 >
|
|
|
|
 |
|
